A packaging line can be mechanically sound, powered correctly, and still lose production because a photoeye is poorly placed, a timer is misunderstood, or a safety circuit is not validated. This is the working territory of an electrical controls engineer: turning equipment requirements into electrical and software systems that operate predictably in the real world.
The role sits at the intersection of electrical design, automation, industrial safety, and field problem-solving. It can look different in a manufacturing plant, an original equipment manufacturer, a system integrator, or a utility facility. The common responsibility is clear: make machines and processes sense conditions, make decisions, act safely, and provide useful information when something goes wrong.
What an Electrical Controls Engineer Is Responsible For

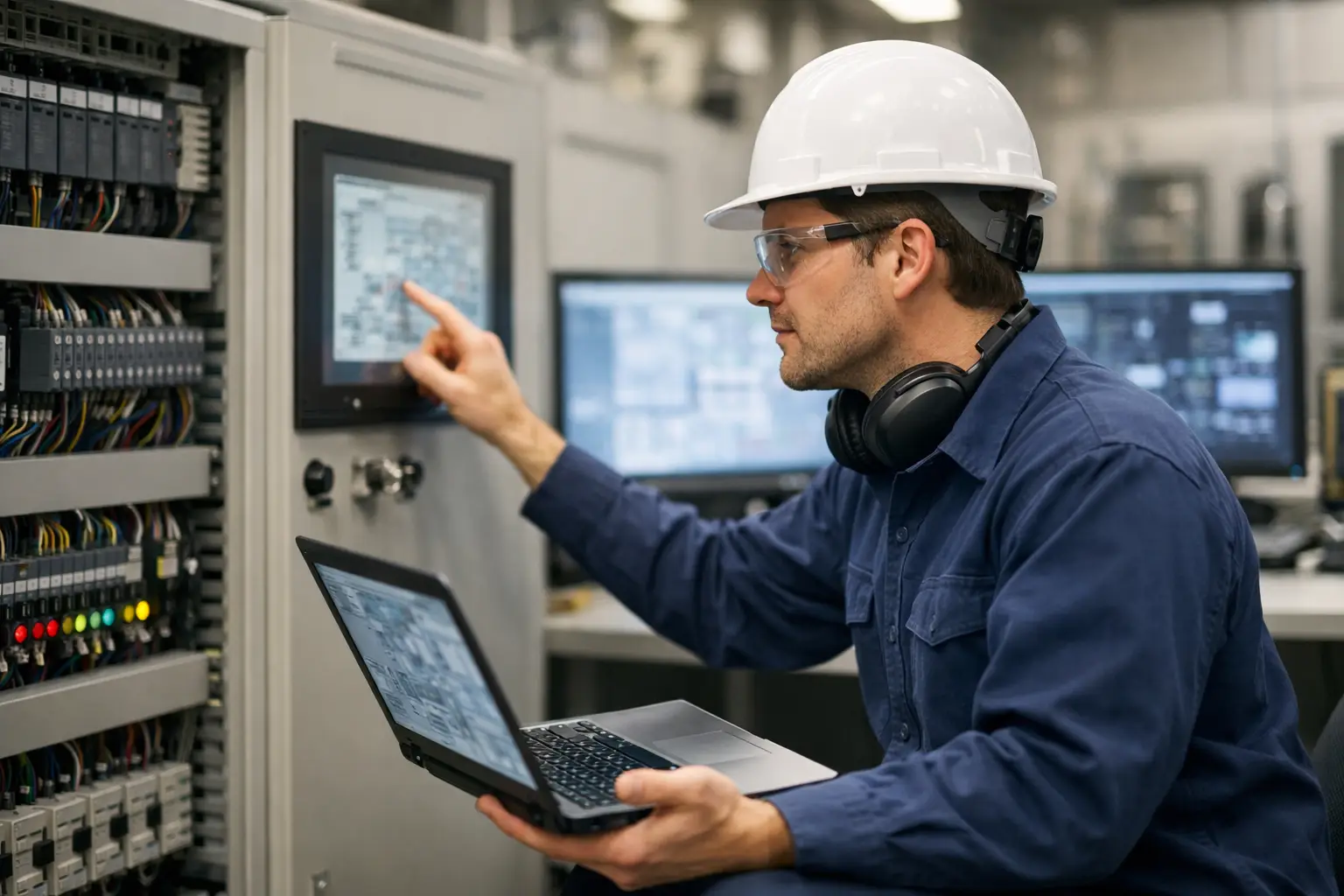

An electrical controls engineer designs and supports the control systems behind industrial equipment. These systems may include motors, variable frequency drives, programmable logic controllers (PLCs), human-machine interfaces (HMIs), sensors, safety relays, industrial networks, and control panels.
The work starts before a panel is built or code is written. Engineers review a process description, sequence of operations, equipment layout, applicable standards, and customer requirements. From there, they decide what the system must detect, what it must control, how it should respond to faults, and what operators need to see.
A simple conveyor provides a useful example. The controls system may need to start and stop a motor, detect product position, prevent jams, coordinate with upstream and downstream equipment, report a fault to an HMI, and bring motion to a safe state when a guard door opens. Each function sounds straightforward in isolation. Together, they require careful decisions about wiring, logic, timing, failure modes, and operator behavior.
The engineer's responsibilities commonly include electrical schematics, panel layouts, component selection, PLC and HMI programming, network configuration, testing, startup support, troubleshooting, and documentation. In smaller organizations, one person may handle all of these tasks. In larger teams, the work is divided among electrical designers, programmers, project engineers, technicians, and commissioning specialists.
Electrical Controls Engineer Work Begins With the Process
Good control design follows the process, not the other way around. Before selecting hardware or opening a programming environment, the engineer needs to understand how the equipment is supposed to operate.
That often means asking practical questions. What starts the sequence? Which conditions must be true before motion is allowed? What happens if an air-pressure switch fails or a motor overload trips? Can an operator recover from a stoppage safely, or must maintenance intervene? What production data matters to supervisors and maintenance teams?
These questions lead to documents such as an I/O list, a sequence of operations, alarm definitions, a cause-and-effect matrix, and a functional design specification. The depth of documentation depends on the project. A small retrofit may require concise notes and marked-up drawings. A regulated process or a large production line may need formal review and traceability.
There is a trade-off here. Too little definition pushes unresolved decisions into commissioning, when changes are expensive and disruptive. Too much documentation can slow a small project without adding useful clarity. Experienced engineers match the level of detail to project risk, equipment complexity, and the cost of downtime.
Core Technical Skills That Matter
Controls engineering is not one skill. It is a connected set of disciplines, and gaps in one area often appear later as startup problems.
Electrical Design and Power Fundamentals
Engineers need a working understanding of AC and DC power, motor control, circuit protection, grounding, control voltage, and panel construction. They should be able to read and create schematics that technicians can build and troubleshoot without guesswork.
Component selection also matters. A relay, power supply, overload device, enclosure, terminal block, or sensor must fit the electrical load and the operating environment. Heat, washdown exposure, vibration, hazardous locations, spare capacity, and service access can change a reasonable choice into a poor one.
PLC, HMI, and Motion Programming
PLCs run the logic that coordinates most industrial machines. An engineer may program in ladder logic, function block diagrams, structured text, or a combination of languages. The language matters less than the quality of the design: clear states, understandable interlocks, controlled startup behavior, and faults that help people find the real issue.
HMIs are equally important. A screen should give operators enough context to run and recover equipment without forcing them to interpret cryptic messages. “Station 4 fault” is rarely useful. “Station 4 cylinder did not extend within 3 seconds - check air supply, sensor, and obstruction” gives the operator a starting point.
Motion applications add another layer. Servo axes, coordinated motion, registration, electronic gearing, and precise position control can improve performance, but they also increase setup and diagnostic demands. A basic drive may be the better choice when precision is not required.
Industrial Networks and Data
Modern control systems exchange data through industrial Ethernet networks and fieldbus protocols. Engineers configure communication between PLCs, remote I/O, drives, safety devices, vision systems, barcode readers, and supervisory systems.
Network design is not just about making devices connect. It includes addressing, managed switches, segmentation, cable routing, noise control, diagnostics, and cybersecurity boundaries. A machine that runs well in a test area can behave differently when connected to a busy plant network.
Functional Safety
Safety is a design responsibility, not a last-minute addition. Controls engineers work with safety requirements that may involve emergency stops, safety gates, light curtains, safety-rated controllers, and monitored contactors. The exact method depends on the hazard assessment and the required performance level or safety integrity target.
The key point is that a safety function must be designed and verified as a complete function. A safety-rated device alone does not make the system safe. Wiring, logic, mechanical stopping behavior, reset behavior, and validation all matter.
Commissioning Is Where Assumptions Are Tested
Commissioning is the phase that reveals whether a controls design works outside a drawing set and programming workstation. Equipment is energized, signals are checked, motors are bumped, sensors are adjusted, sequences are run, and faults are intentionally introduced.
A disciplined startup usually begins with point-to-point checks. Does each input arrive at the correct PLC address? Does each output operate the intended device? Are safety circuits behaving as designed? Only then should the team run automatic sequences.
The pressure to move quickly is real, especially when production is waiting. Skipping basic checks can feel efficient until an incorrect output energizes the wrong device or a nuisance fault appears in the middle of a trial run. Good engineers balance schedule urgency with methodical testing.
They also pay attention to how the system fails. Sensors get dirty, products vary, air pressure drops, operators make reasonable mistakes, and components eventually wear out. A control system should fail in a controlled way, retain enough diagnostic information, and make recovery clear.
Troubleshooting Requires Both Logic and Restraint
When a machine stops, the visible alarm is not always the root cause. A drive fault may result from a mechanical bind. A sensor alarm may come from a damaged cable. A communications failure may trace back to a power supply or grounding issue.
Effective troubleshooting starts with evidence. Review the machine state, HMI alarms, electrical prints, trend data, and recent changes. Check the simplest physical conditions before changing code. Confirm whether the problem is repeatable and whether it affects one station or the whole system.
The restraint matters. Editing PLC logic during a production upset can create a second problem while hiding the first. Temporary changes should be controlled, documented, and tested. In many facilities, the best long-term improvement after a failure is not more logic but better labeling, clearer diagnostics, a revised sensor bracket, or a preventive maintenance task.
Building a Career in Controls Engineering
For students and early-career engineers, hands-on exposure is especially valuable. Learn to read electrical drawings, understand basic motor circuits, and trace an input through a PLC program to an output device. Small projects with a PLC trainer, microcontroller, relay panel, or simulation tool can build useful habits if they include documentation and fault testing.
For practicing engineers, depth comes from seeing systems operate under real constraints. Plant maintenance work develops troubleshooting instincts. OEM work builds design and machine-sequencing skills. System integration exposes engineers to varied industries and fast project cycles. None is automatically better. The right path depends on whether you prefer ownership of a facility, repeated machine design, or project variety.
Communication is also a technical advantage. Controls engineers work with operators, electricians, mechanical engineers, IT teams, vendors, and project managers. Clear drawings, useful alarms, concise test records, and honest status updates reduce confusion when time is limited.
A capable controls engineer is not defined by a single PLC platform or programming language. The lasting value is the ability to understand a process, anticipate failure modes, and leave behind a system that the next technician or engineer can safely operate and improve. That standard is a practical place to start on every project.
